Product introduction :
The BSIDE X1 product is a future-oriented electrical tester created by the BSIDE brand designer.
The product has a 2.0-inch smart display, and has the test attributes of a voltage detector and a smart multimeter. With the increasing importance of electricity safety, this product will become a necessity in your daily life.

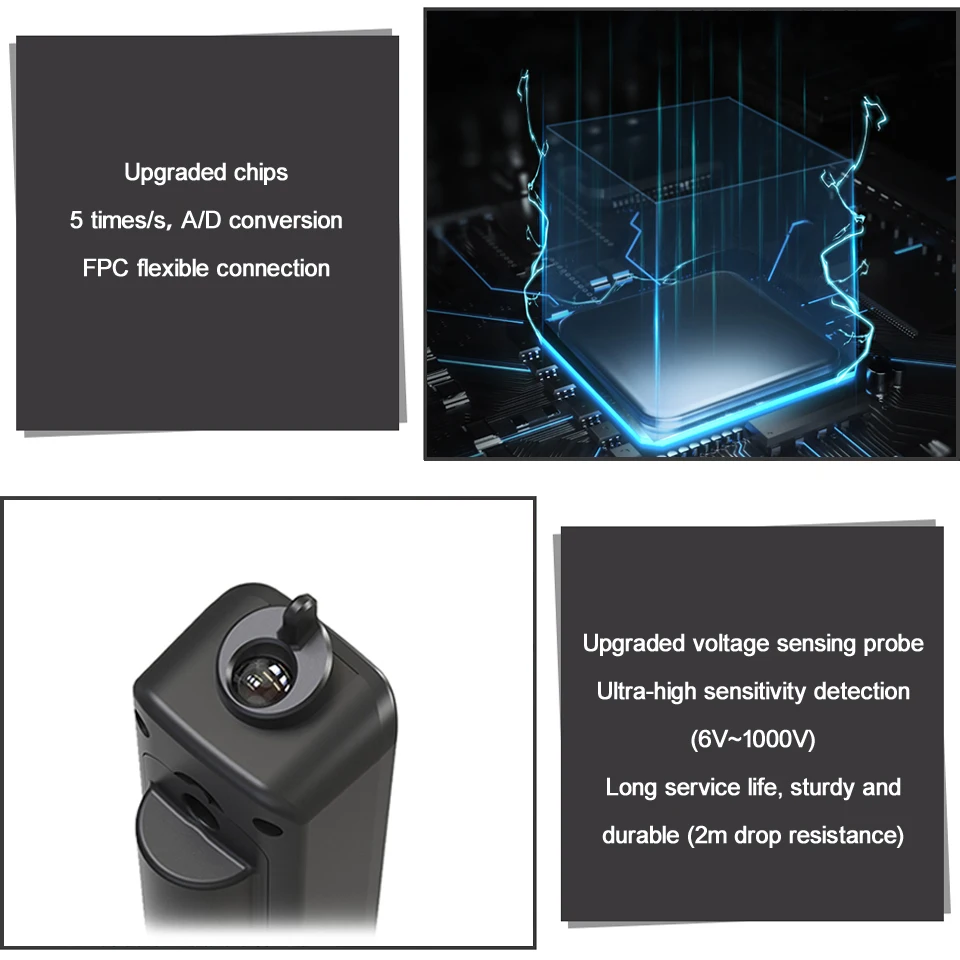

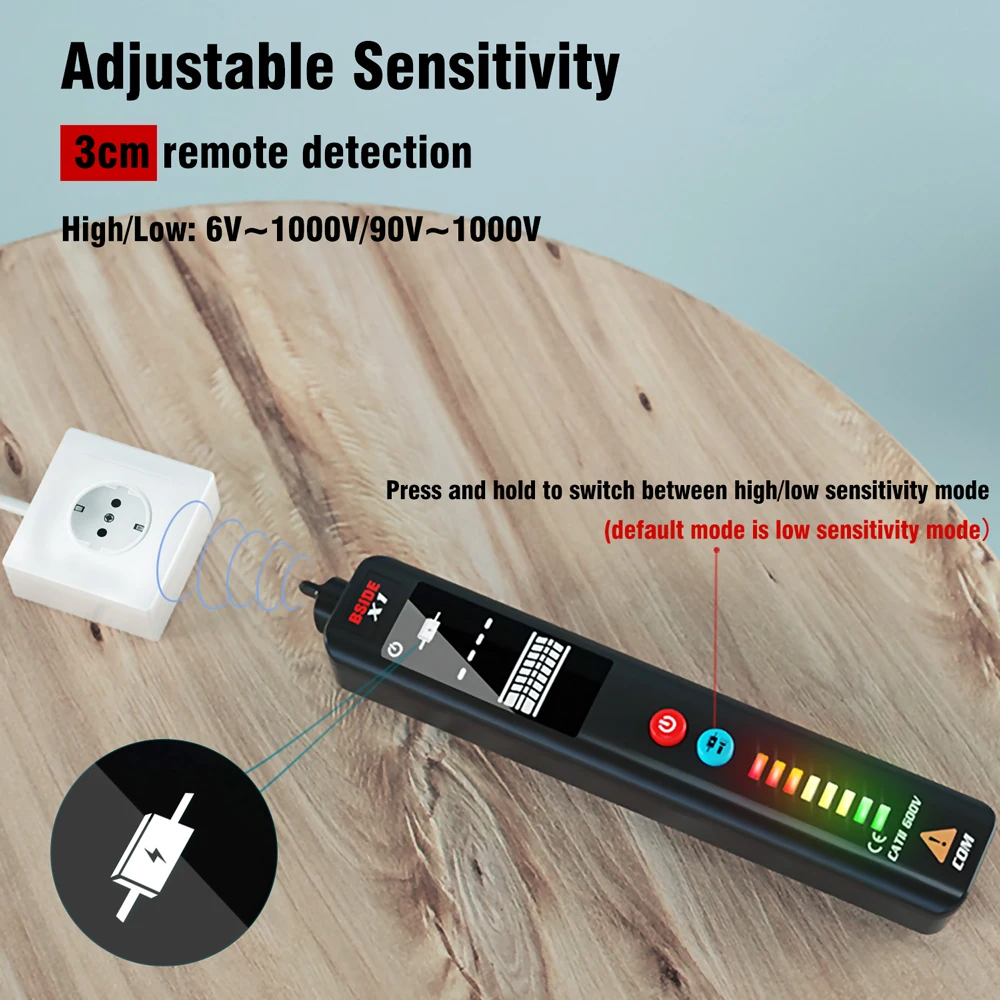

At the same time optimize the use of functions and test experience. The sensitivity is adjustable. And added the latest design of “High sensitivity detection mode“(6V~1000V) .
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H1cc08f07b98c4caaa49bc64d722b11edJ.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H496f6c2b0fed4679a3914ab2b71fe3d8E.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H93f25549b9f5438885a2d146300ff417o.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H5da1271f988146189ea0f1add6949642D.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H5e0043dadfca41b79158f317a3595d86v.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/He52ddf4b28cc4b3aa71f048758ef542eM.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/He8ee6fdedcca42e19dfb2f4c8ea378c46.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/Ha4984042d1854b1e8c4897d4f329120fj.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/Had3a80764a9c49f5999c24b01140b0a9p.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H3c425d8cc85a4e2caf3713679ffdaa0av.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H869f180cd6b54b2da2aaeef8ac4c416ch.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H87b66a4fb3e34259a240524416a122bfs.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H166de4cff90c44bda629803bd6d15775b.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H21dd8fdaccf54d2eabe810a69c90854eI.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/Hd940708425a24ff3965e7f4a3a237073f.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H46b974d903a940d1b70fdb31079cd1ebD.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H43c8055ffc044751bbfa7fc13ab0f360V.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/Hb9dfb52a15894e93937cfc9ba78bc60e4.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H736618fe517d467aa45600c626973353W.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H6f07b5c2373c4c01942bc74559c2646e1.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H3da96ffea39f4e3f8c2fc0e3bf28bb015.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H2553e09259b74534975c16115528e1eeV.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H5249bb55e5ef42498c966ecd63061fc9M.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H431d37a06dc24718a65e400d3d4c53b4d.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H284471193087465bb8868fd9ff89dd26V.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H4c9840300ce848ff898784efdafd33bel.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H9680fda9d4db4a47a6d1aaddecd41f823.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/Hd36ee14b18c643f3b67f74f1d8bf8360l.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H1c5f16ef11f0412ea21378c3b4c0b8cco.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/H00b81ef137604bb1a16169a6551c591cn.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/Had825b16ac49467b9f2cc08e79e89144W.jpg)
![BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter BSIDE Non-contact Voltage Detector Tester Multimeter X1 Intelligent Electric test pencil Large screen Live wire Hz Ohm NCV Meter](http://ae01.alicdn.com/kf/Hb0b6d13e59384544a41f03615b53af997.jpg)
Main Features:
Non-contact and pen shaped desigh,convenient to operate and carry.
EBTN ultra-clear display, clear and easy to read.
Dual mode operation.(Low sensitivity and High sensitivity)

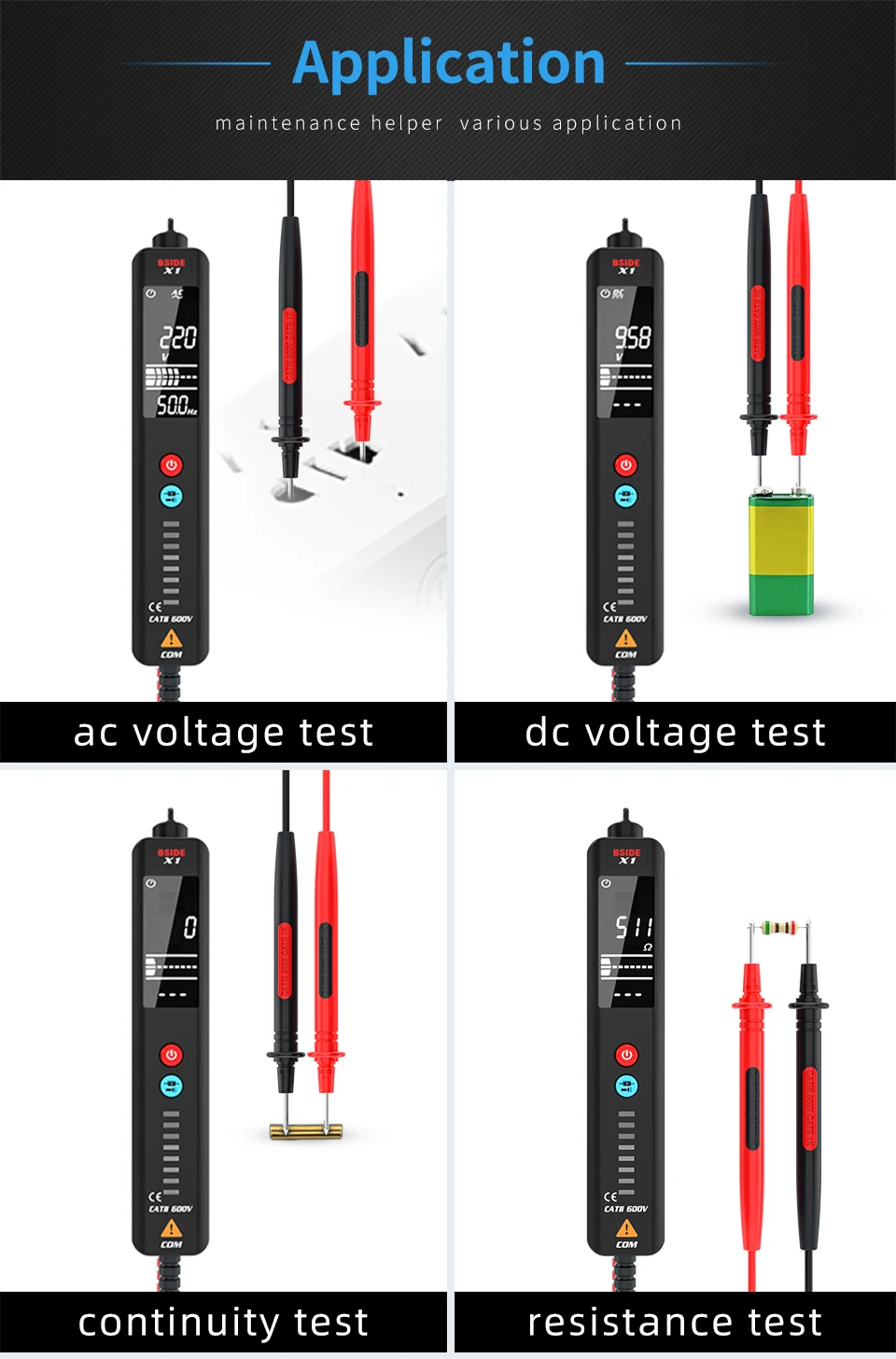

Has Induction dangerous voltage alarm, DC/AC voltage, Resistance, Frequency, Live/Neutral wire distinction, Live Wire Breakpoint Locate, Continuity check, flashlight features etc.
This product has a Self-test function at boot time. It can effectively detect whether the product can work normally and avoid wrong judgment. More Safety!
Has 8 LED indicators in 3 colors (Red/Yellow):Automatic identification of high/medium/low voltage.

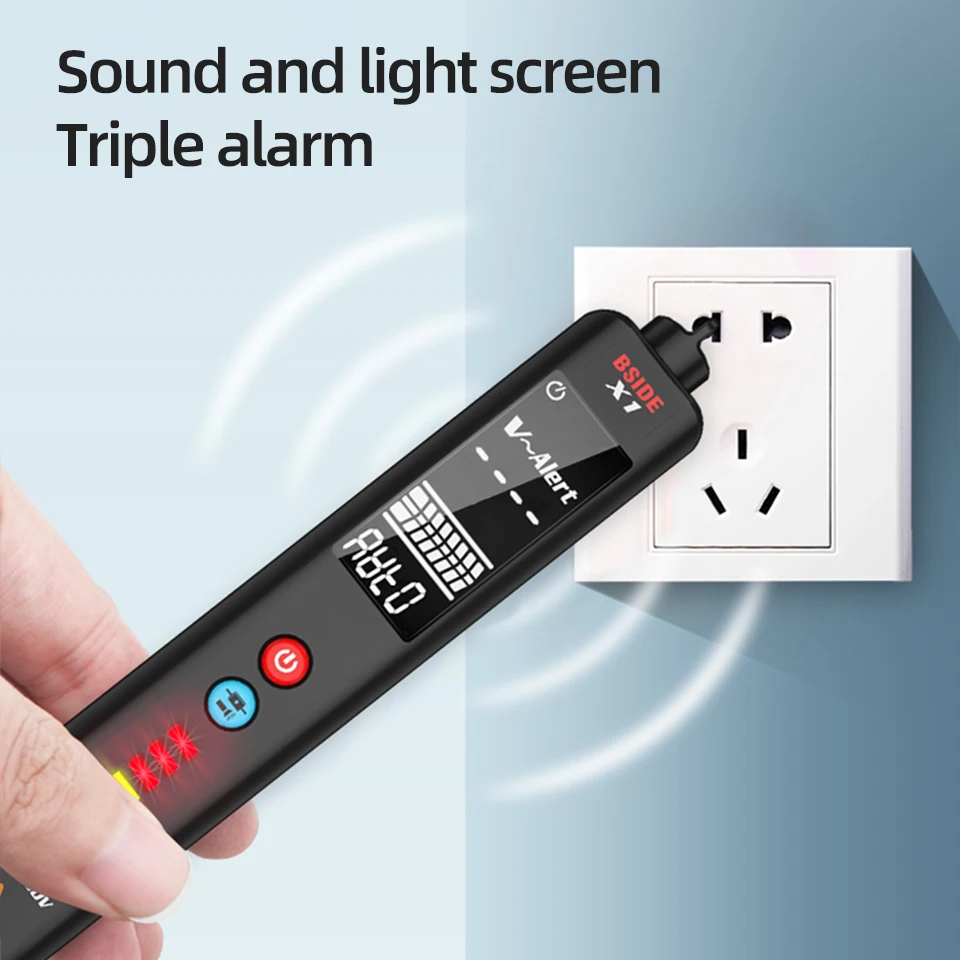

Alarm mode:Sound、Analog strip and light (Red/Yellow).
LED spotlight, Battery low voltage reminder, Auto power off features.
Safety level: CAT II 600V.
Compliance with international safety standards.

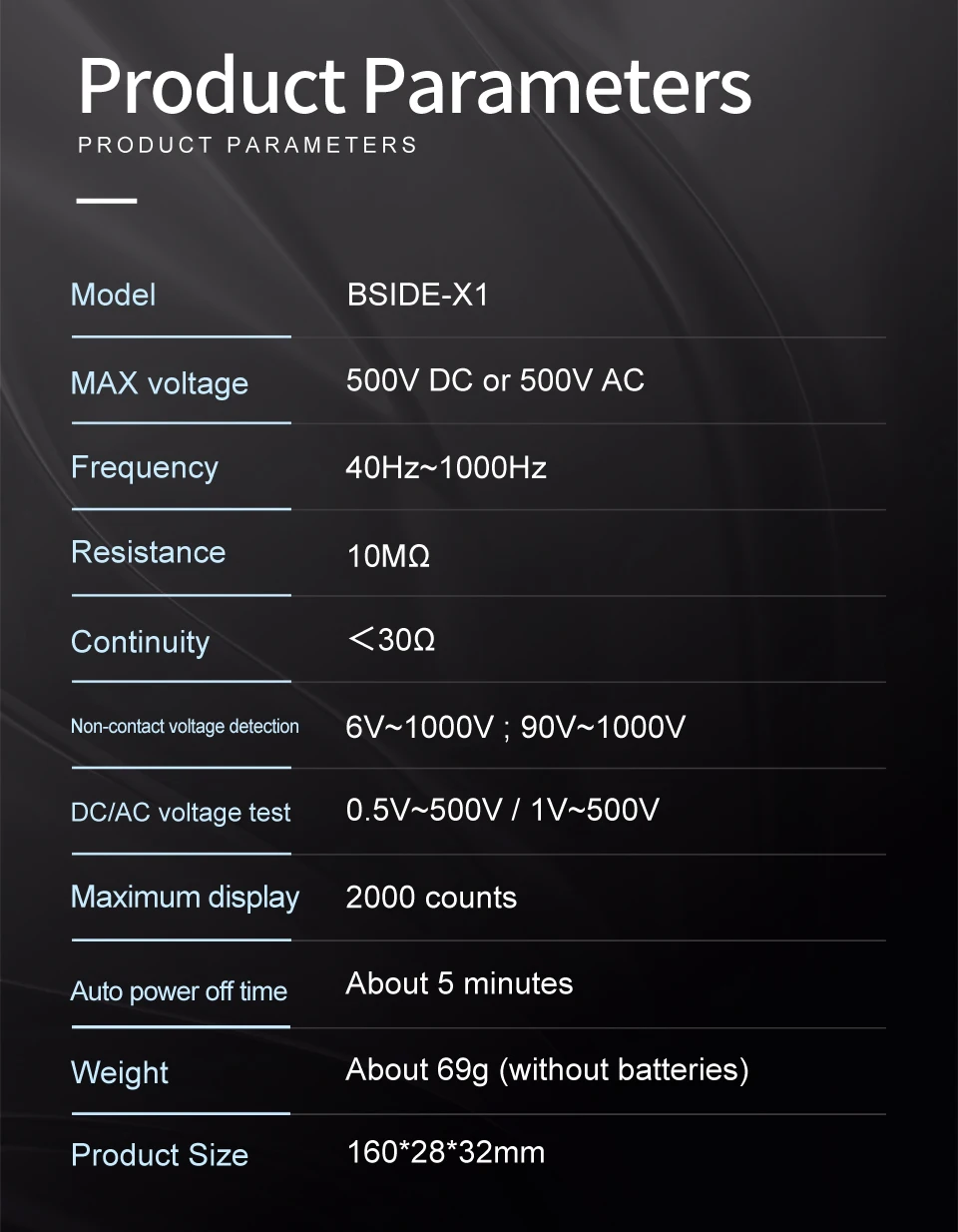

Product description:
Maximum display: 2000 counts.
Meter Thickness: 1.5 cm.
DC Voltage: 500V 0.1V ±(0.8%+3)
AC Voltage: 500V 0.1V ±(1.2%+5)
Resistance: 10MΩ 1Ω ±(1.2%+3)
Frequency: 1000Hz 1Hz ±(2.0%+3)
Non-contact dangerous voltage detection:Yes.

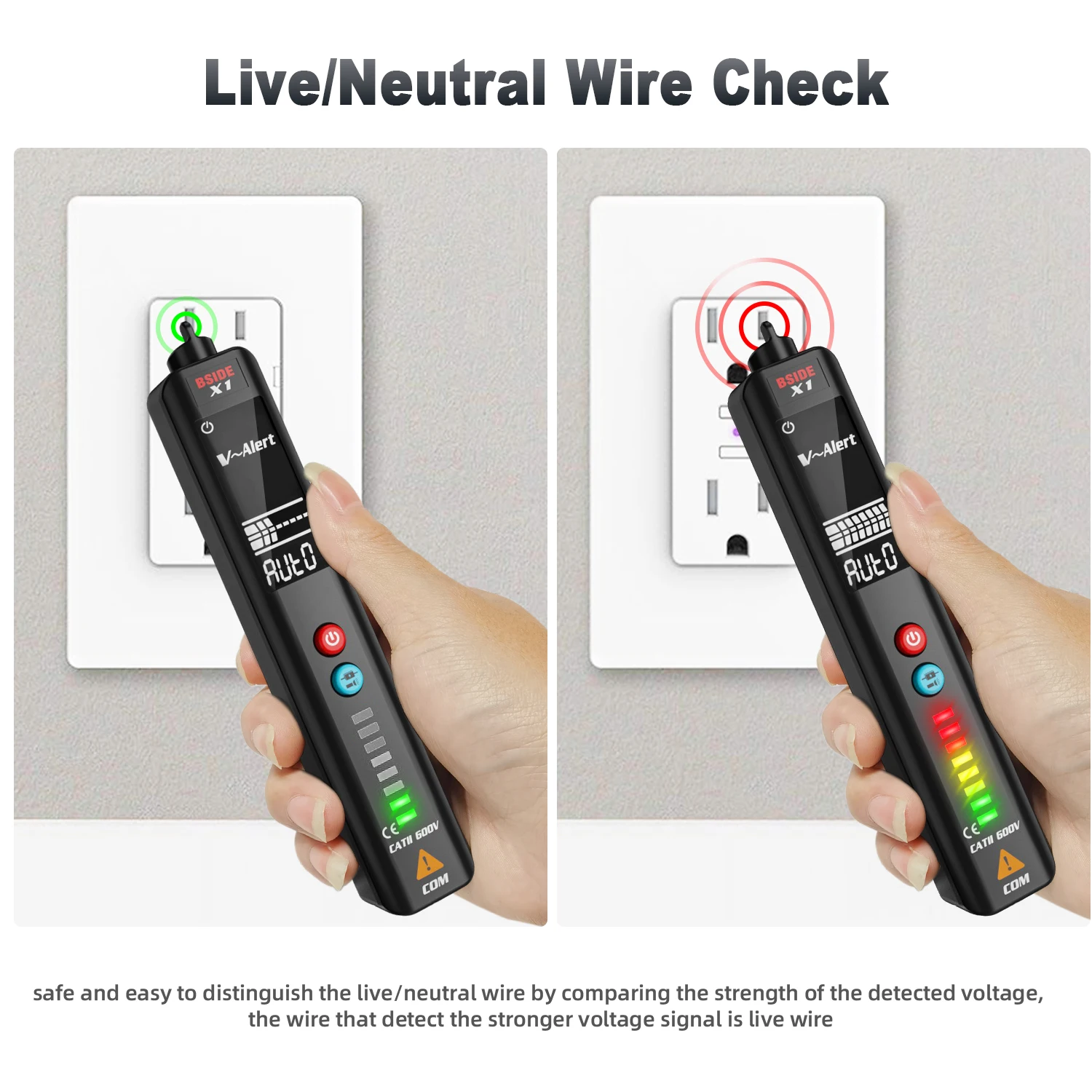

Live/Neutral Check: alarm beep sounds, LCD screen display stripe.
Continuity test: If the resistance is less than 30Ω, the beeper sounds.
Battery test: Yes.
Power: 2 * 1.5v AAA battery.
Size: 160*30*25mm.
Weight: 196g.
Security Level:Comply with international safety standards. CE certification.
Package includes:
1 * X1 Voltage detector.

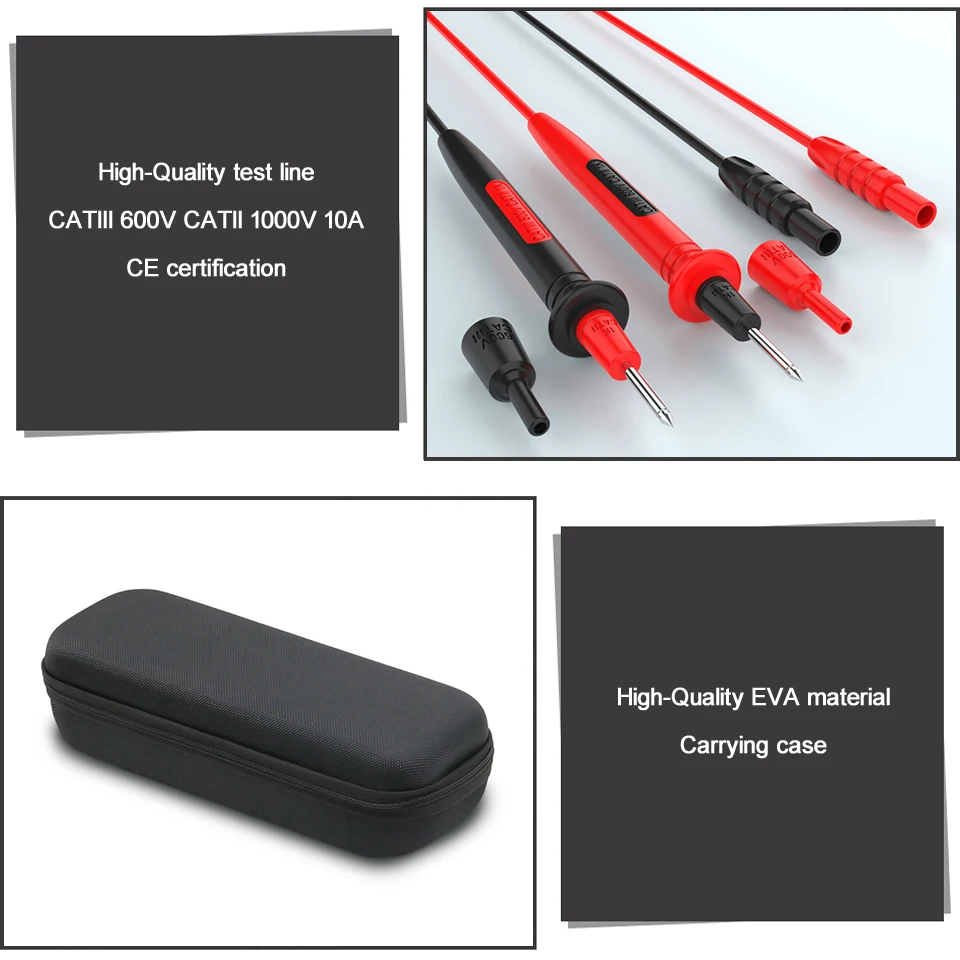

1 * EVA portable cloth bag
1 * High quality test lead
1 * English manual.
1 * box
Tool Kits

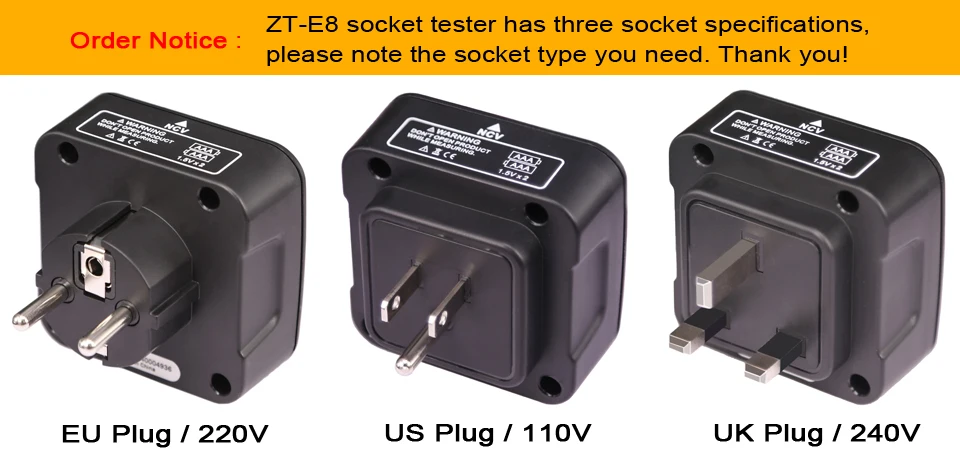

X1 product + ZT-E8 multifunctional EBTN display socket tester.
